High-precision fiber laser cutting machine with advanced IPG laser source, delivering exceptional speed and accuracy for industrial metal processing. Available in 1kW to 12kW configurations.
ISO 9001 Certified
30-Day Delivery

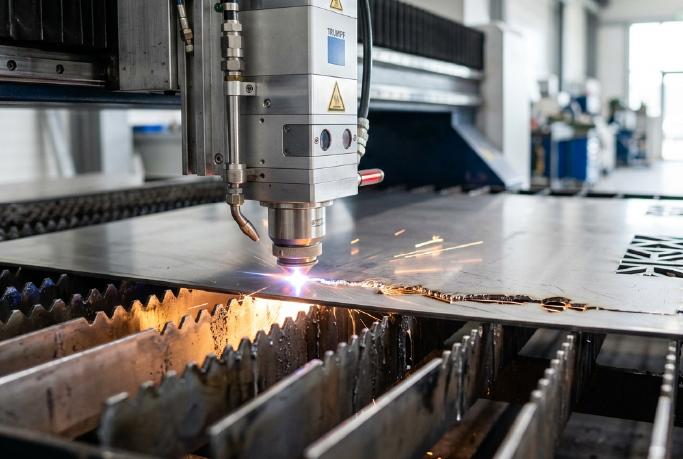

2-Year WarrantyThe FL-3015 Fiber Laser Cutting Machine represents the pinnacle of Prato Laser's decade-long commitment to innovation. Built with a heavy-duty welded steel frame and stress-relieved construction, this machine delivers unmatched stability and precision even at maximum cutting speeds.
Every component is carefully selected and tested to ensure maximum performance, reliability, and return on your investment.
Achieve cutting speeds up to 40m/min with rapid positioning at 100m/min. Process more parts per hour and dramatically increase your production throughput.
Premium IPG photonics laser source with 100,000+ hours lifespan. Delivers stable, consistent beam quality for superior cutting results across all materials.
Dual exchange worktable enables loading/unloading while cutting, reducing idle time by up to 60%. Seamless production flow for high-volume operations.
German-engineered Precitec cutting head with
automatic focus adjustment. Handles material
thickness changes without manual intervention,
ensuring consistent quality.
Class 1 laser safety enclosure with advanced smoke extraction system. Protects operators from laser
radiation while maintaining a clean workshop environment.
Cypcut professional CNC system with auto-edge-finding, frog-jump piercing, and intelligent path
optimization. Minimizes waste and maximizes
cutting efficiency.
| PARAMETER | FL-3015 (3KW) | FL-3015 (6KW) | FL-3015 (12KW) |
|---|---|---|---|
| Working Area | 3000 × 1500 mm | 3000 × 1500 mm | 3000 × 1500 mm |
| Laser Power | 3,000 W | 6,000 W | 12,000 W |
| Laser Source | IPG / Raycus | IPG / Raycus | IPG / Raycus |
| Positioning Accuracy | ±0.05 mm | ±0.03 mm | ±0.03 mm |
| Repositioning Accuracy | ±0.03 mm | ±0.02 mm | ±0.02 mm |
| Max Cutting Speed | 35 m/min | 40 m/min | 40 m/min |
| Max Rapid Travel | 100 m/min | 120 m/min | 120 m/min |
| Max CS Thickness | 20 mm | 25 mm | 40 mm |
| Max SS Thickness | 10 mm | 16 mm | 30 mm |
| Max Aluminum Thickness | 8 mm | 12 mm | 25 mm |
| Cutting Head | Raytools | Precitec | Precitec ProCutter |
| Control System | Cypcut | Cypcut | Cypcut |
| Drive System | Yaskawa Servo | Yaskawa Servo | Yaskawa Servo |
| Exchange Table | Optional | Standard | Standard |
| Machine Weight | 6,500 kg | 7,200 kg | 8,000 kg |
Carbon Steel
Up to 20mm
Stainless Steel
Up to 10mm
Cutting Speed
35 m/min
Best For
Light-Medium Use
Carbon Steel
Up to 25mm
Stainless Steel
Up to 16mm
Cutting Speed
40 m/min
Best For
Medium-Heavy Use
Carbon Steel
Up to 40mm
Stainless Steel
Up to 30mm
Cutting Speed
40 m/min
Best For
Heavy Industrial
The FL-3015 handles a wide range of metals and alloys with precision. From thin sheet to thick plate, achieve clean edges and minimal heat-affected zones.
Up to 40mm thickness
Up to 30mm thickness
Up to 25mm thickness
Up to 12mm thickness
Up to 20mm thickness
Up to 8mm thickness
Up to 10mm thickness
Up to 30mm thickness
From automotive manufacturing to architectural metalwork, the FL-3015 serves a wide spectrum of industries with versatility and precision.
